Mic Splitter, 4 channel 3 way,1 direct, 2 isolated outputs

Whirlwind MLTSP1X3 MultiSplits Mic Splitter

PAS DEAL $486.00
You'll earn 378 points
Mfg Model SKU MLTSP1X3
UPC Code 692465002134
.


Free Shipping

Availability: YES, in stock

Product Code : MLTSP1X3
QTY:

DESCRIPTION


Whirlwind MLTSP1X3 Mic Splitter, 4 channel 3 way, 1 direct and 2 isolated outputs


Four channels of passive and isolated microphone splitting in a single space rack panel.

Ideal for splitting and isolating mic level sends to a video truck or a remote broadcast, the 1U MLTSP1X2 and MLTSP1X3 provide
4 mic inputs split to:
one direct and one or two transformer isolated outputs per channel ,respectively. ( 1 x 3)

Each isolated output has a front panel ground lift switch.

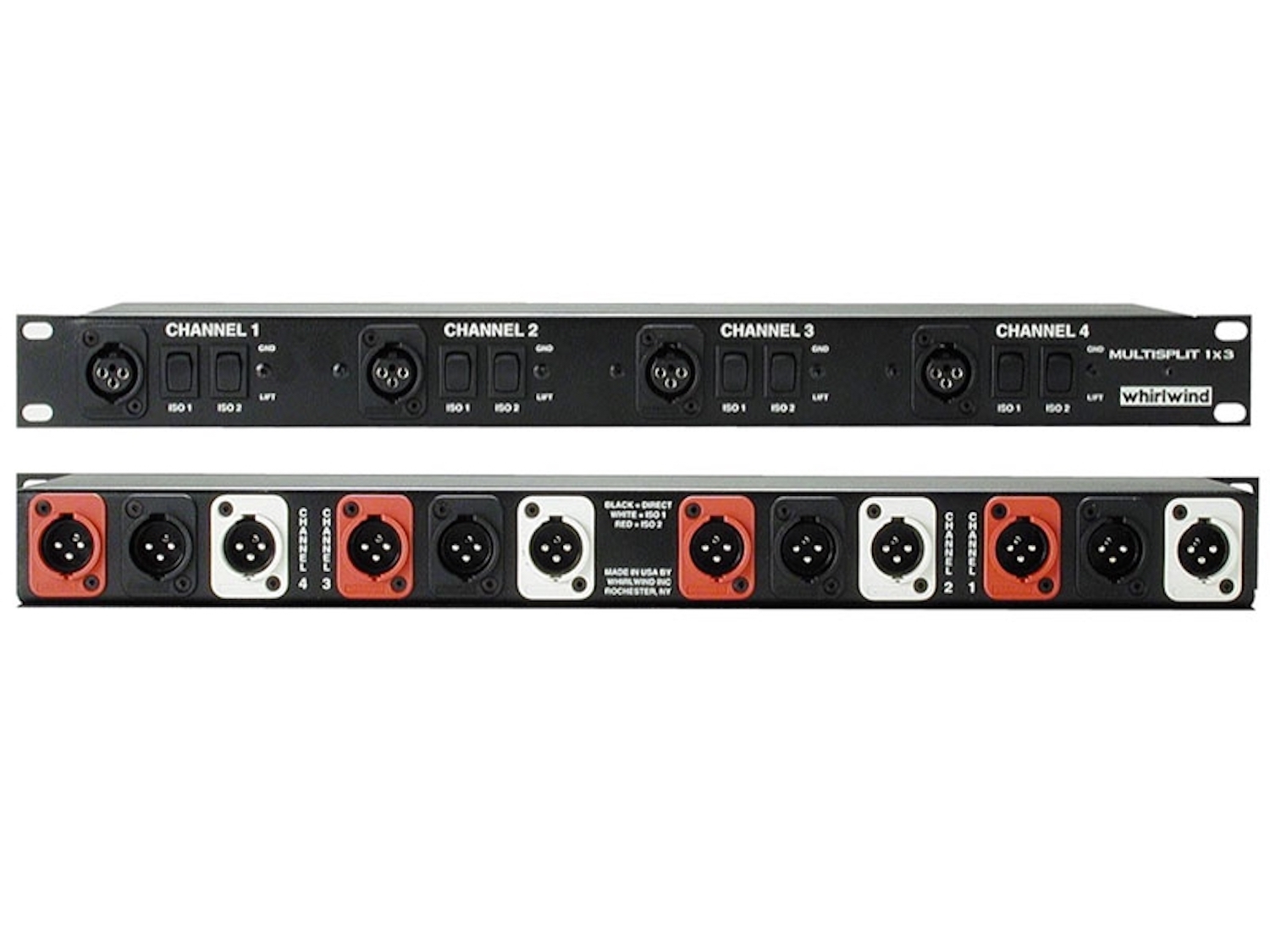

The inputs (female XLR) are located on the front panel and outputs (male XLR) are located on the rear panel.

  • Input Impedance: 150 Ohm
  • Output Impedance: 150 Ohm
  • Operating Level: -50dB to +4dBu
  • Frequency Response: 20Hz-20kHz ?1dB
  • MLTSP1X3: outputs are: 1 direct output, 2 isolated outputs , per channel ( 12 outputs total)
