Whirlwind IMCOML Line Level Combiner, 2 in, 1 out


Whirlwind IMCOML - 2-to-1 Line Combiner

PAS DEAL $151.00
You'll earn 117 points
Mfg Model SKU IMCOML
UPC Code 692465001281
.


Free Shipping

Availability: YES in stock

Product Code : IMCOML
QTY:

DESCRIPTION SPECIFICATIONS

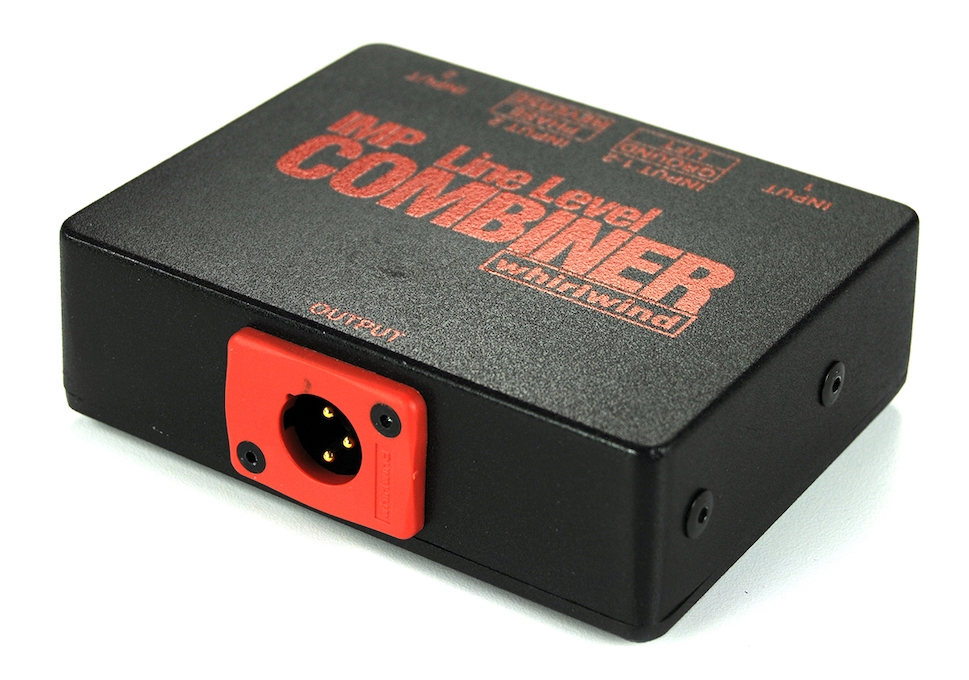

Whirlwind IMCOML Line Level Combiner, 2 in, 1 out, Mono summer

Whirlwind IMCOML - 2-to-1 Line Combiner

IMP LINE LEVEL COMBINER -Mono Summing

Part number: IMCOML

Use the line level combiner when you want to create a mono mix from a stereo source but need to keep the original stereo signals isolated. It's great for feeding a DAT player or CD into a mono system or single channel on a board.

This unit not only combines two line-level signals into one line level output, it also compensates for the 6dB of gain that occurs when two in-phase signals are combined. A handy ground-lift switch breaks the shield connection between the inputs.

Connections are female XLRs in, male XLR out.
Model # - IMCOML
Frequency response:±0.3dB 20Hz-20kHz
Total harmonic distortion + noise: Less than 0.025% at 1kHz
Isolation between inputs: Greater Than 42dB
Insertion loss: -0.6dB, 50 Ohms source impedance -3.8dB, 200 Ohms source impedance
Output level: -3.8dB with both channels at 0dB sine wave input, in phase
Maximum input level: +28dBm
Input impedance: 600 Ohms
Output impedance: Less than 100 Ohms
