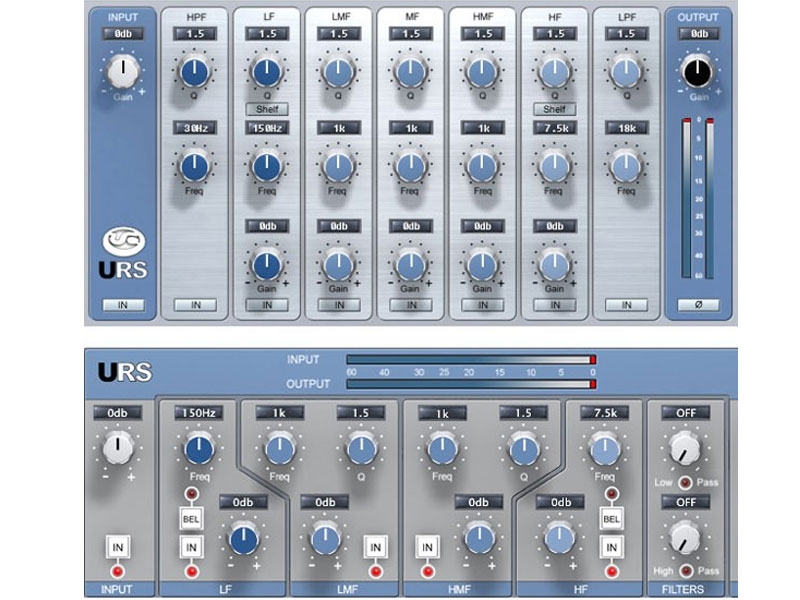

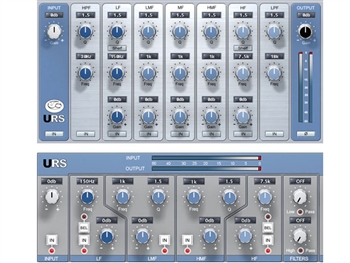

URS S series
Classic Console Mix Equalizer ™
Digitally recreates the classic sound of a famous mixing
console equalizer!
The S series equalizer is the most advanced console style
equalizer plug-in we've ever made.
The URS Classic Console Equalizers use Hi Resolution 48 bit
"Double Precision" processing for increased clarity and
headroom. Hi Resolution 48 bit "Double Precision"
processing helps to avoid internal clipping in the Digital
Domain.
The URS S series is a six band equalizer
with four bands of EQ and Low and High pass filters.
Each band offers overlapping frequencies
spanning 4 to 5 octaves.
Our most advanced plug-in for the Pro Tools
Platform.
The URS S series is our ultimate Pro Tools mix equalizer tool
with mastering accuracy and control features.
The four bands overlap for track sweetening or specific problem
solving.
The low and high bands are switchable Shelf or Bell for that
tight low end and smooth high end.
Input and output metering and line level trims for complete gain
staging.
The Numeric display windows show you all current settings for
Gain, Frequency and Q and Input and Output levels.
Features
- Pro Tools 7.x and Tiger OSX 10.4.4 compatibility
- Pro Tools 6.9.2 and Tiger OSX 10.4.2 compatibility
- Pro Tools 6.9.2 and Panther OSX 10.3.9
compatibility
- Pro Tools 6.2.3 and Jaguar 10.2.8 compatibility
- Pro Tools 5.3.1 and Mac OS9 compatibility
- Pro Tools M-Powered version 6.8 compatibility
-
Full Windows XP support!
- Full 192 kHz support for RTAS and AudioSuite
versions
- Full ProControl, Control|24, Command|8 and Digi 002
support
- Full ICON Console Control Surface support - including
center section EQ panel
-
Supports Mbox, Digi 001, Digi 002, Digi 002 Rack, and M-Audio Interfaces.
- Audio Units support for Logic Pro 7.x, Logic Audio
6.x, Digital Performer 4.x, Bias Peak 4.x, Abelton Live 4.x, Final Cut Pro and
more!
- VST support for Mac and PC Cubase, Nuendo, Sonar, Abelton
Live, Acid, Sound Forge, Bias Peak and more!
Specifications
- Number of Bands: Six
- LF (Low) and HF (High) bands are Shelving or Bell.
- LF Sweep between 30hz and 450hz
- LMF Sweep between .2k to 7.5k
- LMF Q Sweep between 3 and, .25
- HMF Sweep between .2k to 7.5k
- HMF Q Sweep between 3 and .25
- HF Sweep between 1.5k and 18k
- Filter Boost/Cut: +/- 15dB
- Low Pass Filter frequencies - off, sweep
between 12k and 3k
- High Pass Filter frequencies - off, sweep between
20hz and 350hz
- Separate In/Out switch for each band
- Phase reverse switch
- Input and Output Peak Meters with Gain Clip
- Numeric Display Windows for Gain, Frequency and Q and
Input and Output
- Input and Output Trim Adjust -12db to +4db
- In/Out Bypass switch
- 26 Instances per HD Accel chip and 11 Instances per HD chip
and 5 per MIX chip
URS S-MIX EQ
Classic Console Mix Equalizer
Digitally recreates the classic analog mixing console
sound with powerful new features.
Designed for Digidesign's ICON console, the URS S-MIX EQ
aligns perfectly with D-Control's master section EQ plug-in
control panel
All of the URS S-MIX EQ parameters map logically to all of
Digidesign's other control surfaces including:
ProControl, Control|24, Command|8 and Digi 002.
The URS Classic Console Equalizers use Hi Resolution 48 bit
"Double Precision" processing for increased clarity and
headroom. Hi Resolution 48 bit "Double Precision"
processing helps to avoid internal clipping in the Digital
Domain.
The URS S-MIX EQ is a seven band equalizer. It features five
bands of fully parametric EQ plus High and Low Pass filters with
variable slope. Each band offers overlapping frequencies spanning
4 to 5 octaves.
The MIX EQ series of plug-ins are our most advanced Pro Tools
plug-ins.
There has never been analog sounding console equalizers with this
much control.
The five bands overlap for track sweetening or specific
problem solving.
The low and high bands are Shelving or Peak for that tight low
end and smooth high end.
Input and output metering and line level trims for complete gain
staging.
The Numeric display windows show current settings for all
parameters.
Features
- Pro Tools 7.x and Tiger OSX 10.4.4 compatibility
- Pro Tools 6.9.2 and Tiger OSX 10.4.2 compatibility
- Pro Tools 6.9.2 and Panther OSX 10.3.9 compatibility
- Pro Tools 6.1 and Jaguar 10.2.8 compatibility
- Pro Tools 5.3.1 and Mac OS9 compatibility
-
Full Windows XP support!
- Full 192 kHz support for RTAS and AudioSuite
versions
- Full ICON Console Control Surface support - including
center section EQ panel
- Full ProControl, Control|24, Command|8 and Digi 002
support
-
Supports Mbox, Digi 001, Digi 002
- Selectable Mouse control of knobs either XY or
Circular
- Audio Units support for Logic Pro 7.x, Logic Audio
6.x, Digital Performer 4.x, Bias Peak 4.x, Abelton Live 4.x, Final Cut Pro and
more!
- VST support for Mac and PC Cubase, Nuendo, Sonar, Abelton
Live, Acid, Sound Forge, Bias Peak and more!
Specifications
- Number of Bands: Seven
- LF (Low) and HF (High) bands are Shelving or Peak
with variable Q.
- LF Sweep between 30hz and 450hz
- LF Q Sweep between 3 and, .25 in Peak Mode
- LMF Sweep between .2k to 7.5k
- LMF Q Sweep between 3 and, .25
- MF Sweep between .2k to 7.5k
- MF Q Sweep between 3 and, .25
- HMF Sweep between .2k to 7.5k
- HMF Q Sweep between 3 and .25
- HF Sweep between 1.5k and 18k
- HF Q Sweep between 3 and, .25 in Peak Mode
- Filter Boost/Cut: +/- 15dB
- Low Pass Filter frequencies - off, sweep
between 12k and 3k
- High Pass Filter frequencies - off, sweep between
20hz and 350hz
- Separate In/Out switch for each band
- Phase reverse switch
- Input and Output Peak Meters with Gain Clip
- Numeric Display Windows for Gain, Frequency and Q and
Input and Output
- Input and Output Trim Adjust -12db to +4db
- In/Out Bypass switch
Plug In Compatability Overview
OS |
RTAS |
VST |
AU |
Mac OS9 |
o |
o |
|
Mac OSX |
o |
o |
o |
Win XP |
o |
o |
|
Copy Protection: iLok
(sold separately)
Maximum Supported Sample Rate: 192 kHz
