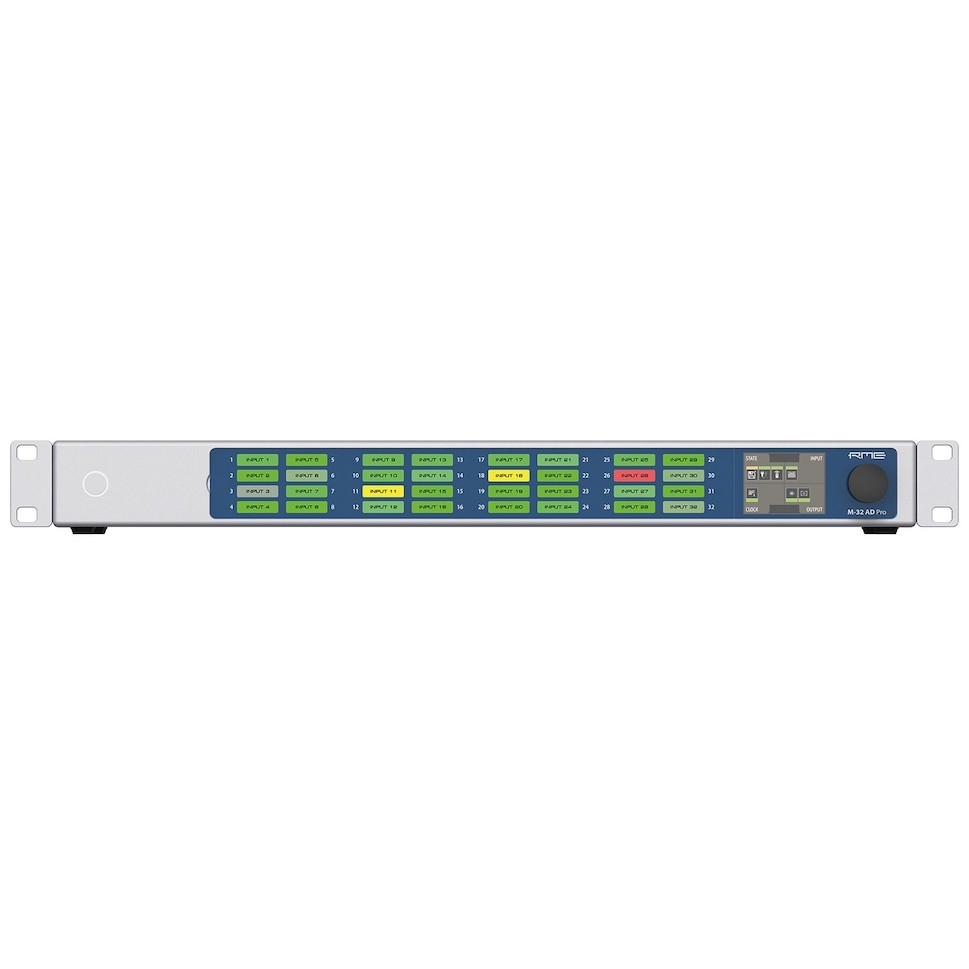

RME M32AD M-32 Pro AD AVB Series Converter

BACK AND BETTER THAN EVER

The RME M-32 Pro AD AVB Series Converter introduces a number of improvements to the original M-32 design—including redundant power supplies, more compact housings, network functionality and more.

When RME released the original M-32 series, it quickly became the industry standard due to its high quality, reliability and number of channels. Now the M-32 series is back and better than ever with new and improved features for modern professional studios, immersive sound stages, live sound systems and more.

CRYSTAL-CLEAR TRANSPARENCY

Equipped with cutting-edge components and a fully balanced analog circuit design, M-32 Pro series converters offer class-leading audio referencing. Featuring extremely low THD values, and a signal-to-noise ratio of 120 dB(A), the M-32 series delivers crystal-clear audio.

Capable of converting 32 channels of audio with up to 192 kHz sampling frequency, M-32 Pro series converters deliver a completely linear frequency response all the way down to 0 Hz.

WELCOME TO THE FUTURE

M-32 Pro series converters are equipped with the state-of-the-art technology for seamless studio integration, including two fully equipped MADI I/Os with individual signal routing, as well as an AVB interface. With AVB support, you can transmit up to 32 analog channels at a maximum 192 kHz sampling rate over a single Ethernet cable.

M-32 Pro series converters use the open AVDECC 1722.1 control protocol for compatibility with external controllers, allowing you to control your converters from your computer via the network connection and the integrated USB port.

CONNECTIVITY:

• 32 x Analog In (25-pin D-sub, up to +24 dBu)
• 2 x MADI I/O (separate optical SC and coaxial BNC, up to 128 Ch)
• 1 x RJ45 1 GigE AVB, four streams with 4/8/12/16 Ch. each
• Word Clock I/O (BNC)
• USB 2.0 (for remote control)
• 2 x monitored fully redundant internal PSUs
