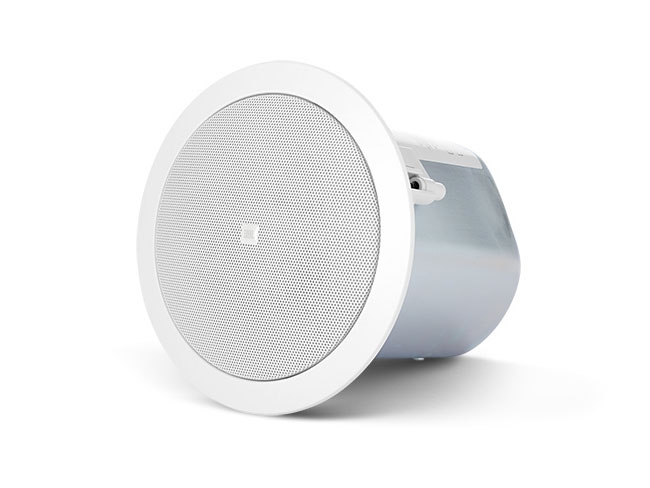

JBL CONTROL 24CT - Control 24C with Transformer, WHITE, SINGLE

JBL CONTROL 24CT - Control 24C with Transformer

-------------- Alternate Views: ---------------
List Price: $178.61
Product Price: $144.00
You save $34.61!
You'll earn 117 points
Mfg Model SKU CONTROL24CT
UPC Code 50036903981
.
(Minimum order):  2


Free Shipping

Availability: Usually Ships in 1 to 2 Business Days

Product Code : CONTROL24CT
QTY:

DESCRIPTION


JBL CONTROL 24CT - Control 24C with Transformer, WHITE, SINGLE


Background/ Foreground Ceiling Loudspeakers
The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.
FEATURES
  • Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
  • High power, wide frequency response and low distortion for high sound level capability.
  • Wide coverage allows fewer speakers, reducing the cost of
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

SPECIFICATIONS
^
Frequency Range80 Hz - 20 kHz
Power Capacity80 W Continuous Program Power; 40 W Continuous Pink Noise
Transformer Taps70 V: 30 W, 15 W, 7.5 W & 3.7 W taps
100 V: 30 W, 15 W, & 7.5 W taps
Nominal Coverage Angle130° conical coverage
Directivity Factor (Q)2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI)3.8 dB averaged 500 Hz to 4 kHz
Rated Maximum SPL102 dB @ 1 m (3.3 ft)
Nominal Impedance16 ohms (Min Z 16.1 ohms @ 320 Hz)
