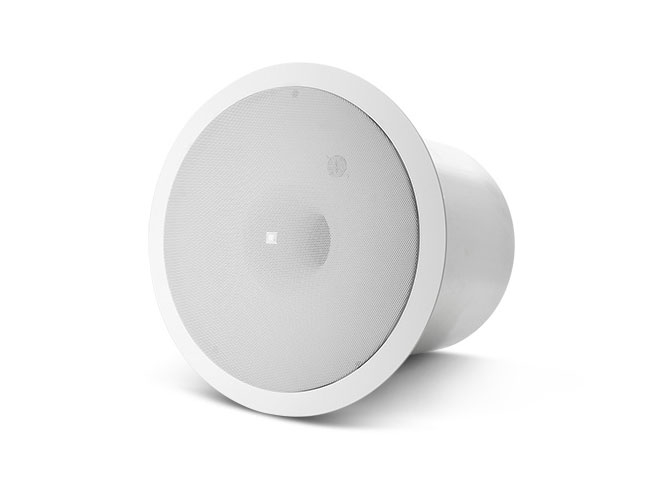

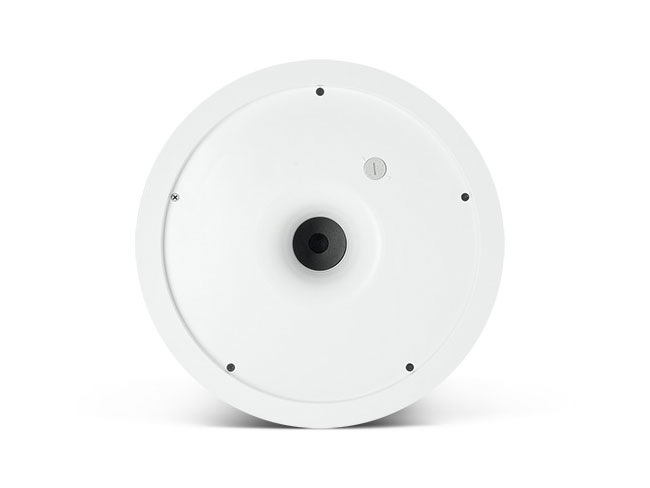

JBL CONTROL 19CS - 8" In-Ceiling Subwoofer, 8 OHM, WHITE SINGLE

JBL CONTROL 19CS - 8" In-Ceiling Subwoofer, WHITE PAIR

-------------- Alternate Views: ---------------
List Price: $345.64
Product Price: $263.00
You save $82.64!
Mfg Model SKU CONTROL19CS
UPC Code 50036903943
.
(Minimum order):  2


Free Shipping

Availability: YES, in stock

Product Code : CONTROL19CS
QTY:

DESCRIPTION


JBL CONTROL 19CS - 8" In-Ceiling Subwoofer,WHITE, SINGLE

Please Note: This item can only be purchased in quantities of 2
In-Ceiling Subwoofer
The Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile
in-ceiling design.
FEATURES
  • Unique Nested Chamber™ design and Linear Dynamic Aperture™ port design delivers high output from a compact enclosure.
  • JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
    system reliability.
  • Component: Long excursion 200 mm (8 in) driver.
  • Packaged with grille, backcan and tile rails for fast installation and easy stocking.
  • Simple installation and wire connection method.

SPECIFICATIONS
^

Frequency Range 42 Hz - 200 Hz

Power Capacity 200 W Continuous Program Power

Nominal Sensitivity 95 dB SPL, 1W @ 1 m (3.3 ft) in ceiling near corner (π/2) 89 dB SPL, 1W @ 1 m (3.3 ft) in center of ceiling (2π)

Nominal Coverage Angle 180° conical coverage

Rated Maximum SPL 115 dB @ 1 m (3.3 ft) in ceiling near corner (π/2)

Nominal Impedance 8 ohms

Low Frequency 200 mm (8.0 in) Polypropelene cone.
38 mm (1.5 in) coil on aluminum former

Enclosure Material Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0

Overload Protection Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST)

Terminations Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2)

Safety Agency Rating In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.

Outside Dimensions (H x Dia) 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to
back of backcan

Cutout Size (H x W) 305 mm (12.0 in)

Net Weight (ea) 5.5 kg (12 lb

Shipping Weight (pair) Control 19CS: T12.7 kg (28 lb)
Control 19CST: 14.3 kg (32 lb)

Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
