Heil Sound RC 22 Replacement Capsule for Screw on Transmitter Capsules


Heil Sound RC 22 Replacement Capsule for Screw on Transmitter Capsules

-------------- Alternate Views: ---------------


Product Price: $189.00
You'll earn 218 points
Mfg Model SKU 0885936932225
UPC Code RC22
.


Free Shipping

Availability: YES, in stock

Product Code : RC22
QTY:

DESCRIPTION


Heil Sound RC22 Wireless Capsule of PR22 for Shure Wireless systems


Made in the USA, by an American!

Support American made products
Our future depends on it!!!

Heil Sound RC22 Wireless Capsule of PR22 for Shure Wireless systems


RC22 - Wireless Capsule of PR22, Heil Sound

Fits Shure and other screw on Hand Held wireless transmitters
includes 3 wire mesh screens, black, nickel or gold.

Heil Sound RC-22 overview

The Heil Sound RC 22 Screw-on Microphone Capsule features the same microphone element found in the Heil Sound PR 22 microphone. The screw-on capsule is intended for use with third-party handheld microphone transmitters that receive a 31.3mm / pitch 1.0mm connection. Some handheld transmitters feature a hexagonal-head set screw; simply loosen the screw to install the capsule. A three conductor contact circuit board makes contact with the transmitters output stage for maximum interchangeability.


The RC 22 contains the dynamic element of the PR 22 producing much better articulation with high rejection from the sides and rear.

The Heil replacement capsules are interchangeable with any of the screw on type hand held transmitters that receive a 31.3mm/pitch 1.0mm.
Some hand held transmitters have a .035 inch hexagonal-head set screw to secure the microphone capsule.
If your transmitter has that, loosen the set screw in the handle of the microphone-transmitter before attempting to unscrew the original capsule.

Holding the bottom of the transmitter simply unscrew the original capsule turning it counterclockwise. Carefully remove. The three conductor contact board disconnects the contacts. Avoid touching or damaging the gold plated contacts on the transmitter or the contact board.

Screw your new Heil RC Capsule onto the transmitter handle and tighten.

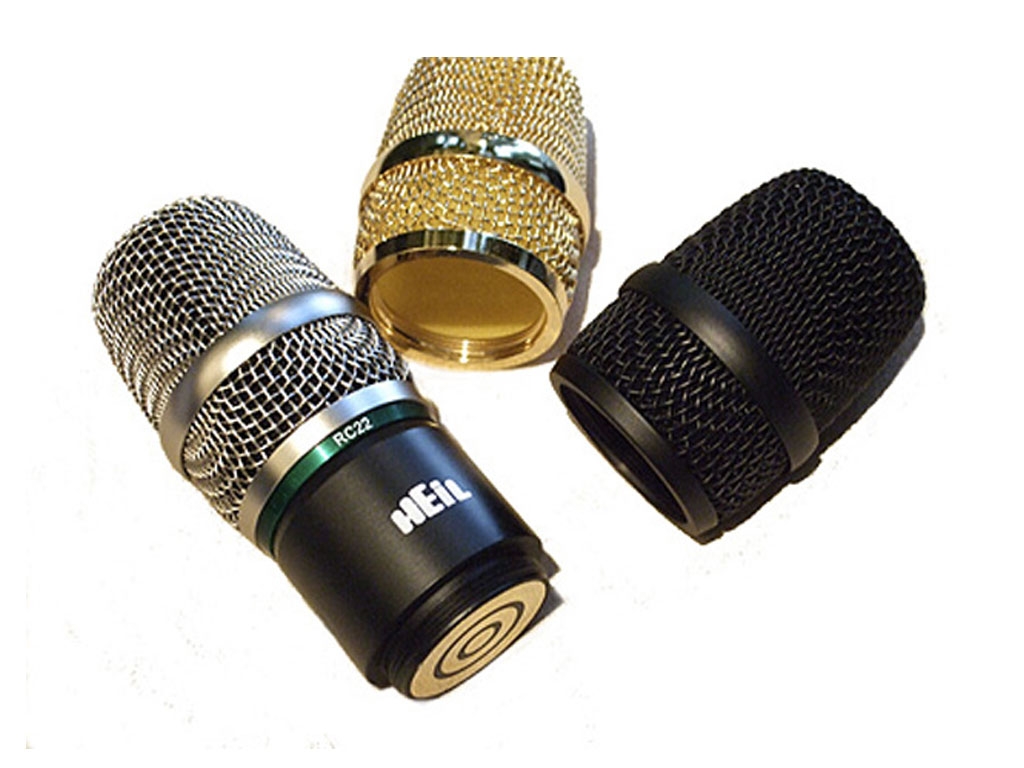

The Heil RC 22 replacement capsule comes to you with all three screens. They are all acoustically identical but give you a choice of the 'look' of your new Heil microphone capsule.All three are provided Black, nickle or Gold - your choice.

This is a product of Heil Sound, Ltd. Microphones utilizing a Heil replacement capsule are subject to performance variations from the original product. This product has not been endorsed or approved by the original manufacturer and the product may not fall within the original manufacturer's warranty. Shure and are registered trademarks of Shure Incorporated. Heil Sound, Ltd. is not affiliated with or authorized by Shure Incorporated.
