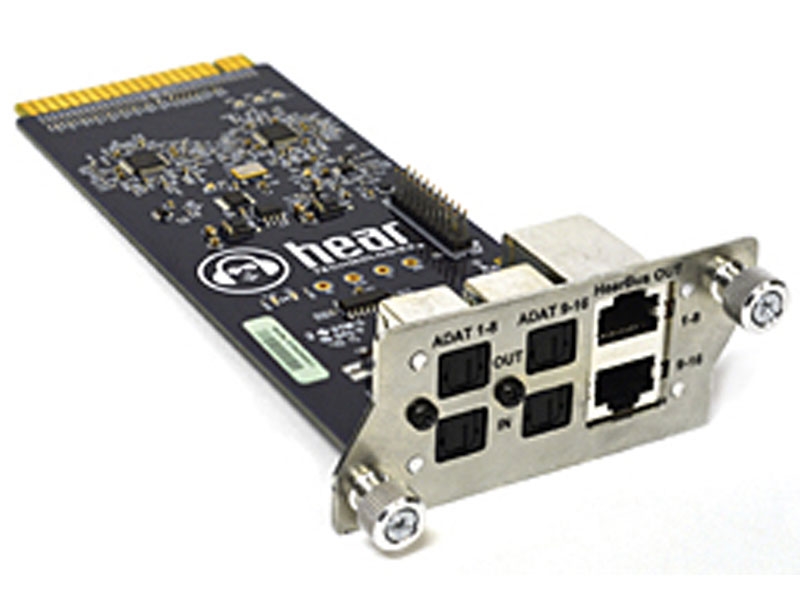

Hear Technologies ADAT Card for PRO Hub

Allows HB PRO Hub to communicate with audio equipment via ADAT protocol.

• Simultaneously sends and receives 16 channels of digital audio
• Backwards compatible with the original 8-channel Hear Back system
• (2) optical ADAT TOS-Link inputs, (2) optical ADAT TOS-Link outputs, and (2) RJ45 HearBus outputs (for connecting to the original Hear Back system)
• Supports and automatically locks on to sampling rates of 44.1kHz
  and 48kHz
• Automatic sampling rate down-conversion is applied on the ADAT and HearBus outputs when the system is running at sampling rates over 48kHz
• (2) cards can be populated per Hub to allow A/B input switching between (2) banks of 16 channels
• Up to (4) cards can be populated to allow A/B input switching as well as a second set of dedicatedADAT outputs
