FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver

The TPRO-RXD 1RU x 1/4 Wide Brick Receiver forms part of FSR's TwisterPro UTP Transmitter/Receiver system. Combined with an optional TPRO-TX transmitter, this receiver allows for long-distance transmission of RGB video, stereo audio, RS-232 data and IR control data. Offering the highest level of signal integrity and error-free transmission, this system uses affordable, easily installed Cat-5/5E/6 cable--a major advantage over bulkier, traditional video and data cables.

Through cable runs of up to 1000 feet, the TPRO-RXD uses RJ-45 connections to transmit not only all RS-232 and IR data, but video resolutions up to 1920 x 1080 and 24-bit stereo audio @48kHZ. A single VGA port handles RGB, component, composite or S-Video signals, while RS-232/IR data is carried via 9-pin DSub. Full expandability is possible using separate 1-in/8-out hubs, which can be cascaded to allow up to 512 outputs.

The TPRO-RXD is ideal for control rooms, classrooms, houses of worship, boardrooms and other applications needing reliable video, audio and data transmission with zero electrical interference. Its "brick" style enclosure can be used on any surface, or it can be rack mounted with an optional rack kit.

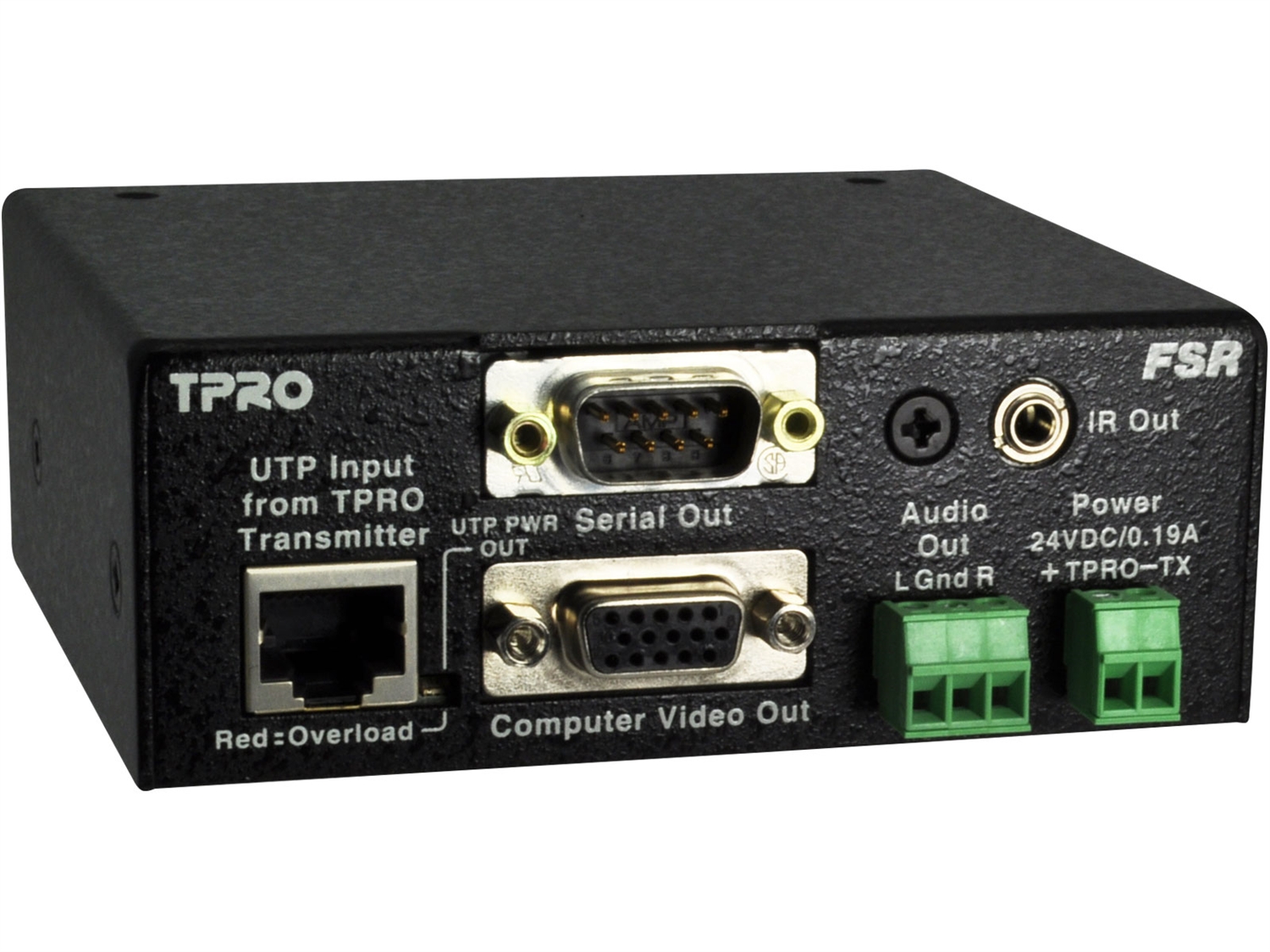

VGA 15-pin DSub female connector for video output

DB-9 male connector for RS-232 output

CAT-5 and UTP connections are via RJ-45 connectors (EIA/TIA-568B)

Video resolutions up to 1920 x 1080 (1080p)

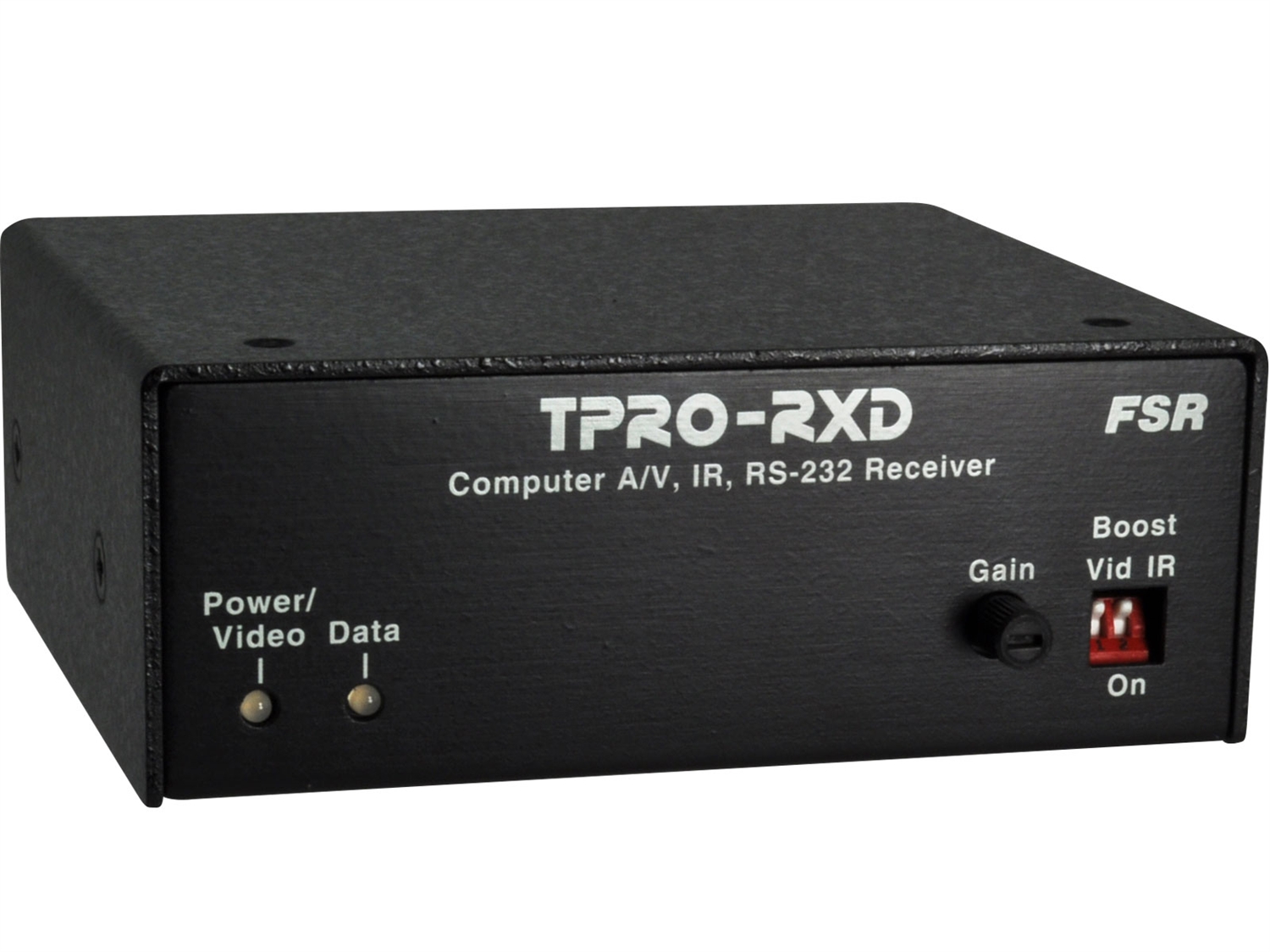

Adjustable gain control on front panel

Compatible with RS-232 standards, most IR devices

Simplex RS-232 up to 19.2k baud

LED indication of video, RS-232 and IR data activity

Custom carrier frequencies are available per customer request

Extends IR control up to 1000 feet

Normal and high output emitter power level settings

High output power level settings up to 60mW allows for multiple emitter connections (emitters sold separately)

Integrated IR sensors in addition to hard-wired input options

UL and CSA approved external power source (wall plug-in) included

High quality 24-bit stereo 48 kHz sample rate

Over-current sensing with LED indication

Optional 1 in/8 out TPRO-HUB with power supply available

Unit can be powered at either transmitter or receiver end, or through optional hub
