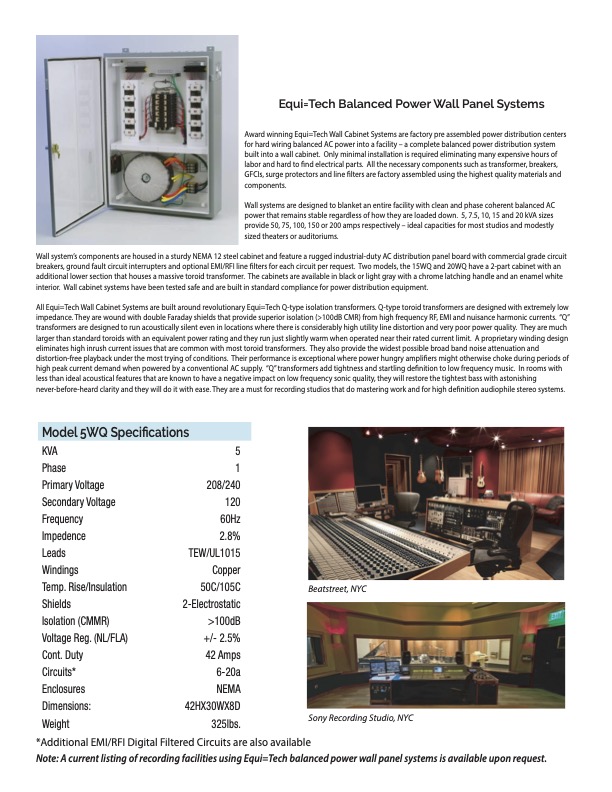

Equitech Model 5WQ 50AMP Studio Wall Mount Balanced Power System

• Model No.: 5WQ
• Output V: 120/60V
• Main CB Output: 50A
• # Circuits: 6-20A
• GFCI Protection: yes
• Surge Protection: 240 Joules
• Input Line: 30A 208/240V 60Hz
• Weight: 285 lbs.

Award winning Equi=Tech Wall Cabinet Systems are factory preassembled power distribution centers for hard wiring balanced AC power in a facility - a complete balanced power distribution system in a wall cabinet. Only minimal installation is required eliminating many expensive hours of labor and electrical parts. All the necessary components such as transformer, breakers, GFCIs, surge protectors and line filters are factory assembled and factory prewired using only the highest quality materials and components.

Wall systems are designed to blanket an entire facility with clean and phase coherent balanced AC power that remains stable regardless of how they are loaded down. 5, 7.5, 10 and 12.5 kVA sizes provide 50, 75, 100 or 125 amps respectively - ideal capacities for most studios. These systems utilize the same precision toroid isolation transformers as Equi=Tech rack systems but they are much larger with a greater capacity. Wall systems maintain an extremely clean grounding system regardless of how much equipment is brought in, turned on and used at one time in a studio.

Wall system's components are housed in a sturdy NEMA 12 steel cabinet and feature a rugged industrial-duty AC distribution panel board with commercial grade circuit breakers, transient voltage surge protection and ground fault circuit interrupters. The cabinet itself is gray with a chrome latching handle and an enamel white interior. Wall cabinet systems are approved safe and are ETL listed in compliance with ANSI/UL Std. 1012 for power distribution equipment.

Most Wall System models are built around Equi=Tech's revolutionary "Q-type" isolation transformers but cabinet size restrictions limit the Q version up to 10kVA only at this time. Q transformers are standard in all 5, 7.5 and 10kVA wall cabinet models. They are wound with exceptionally low line impedance and include two Faraday shields for superior isolation (>100dB CMR) from high frequency RF and current harmonics. These transformers also remain acoustically quiet even in locations where there is considerable line distortion and poor power quality. They are also much larger than standard toroids with the same load rating and run barely warm at near capacity. A proprietary winding design drastically reduces high inrush current and also provides for distortion-free playback performance under the most demanding load conditions. Their performance is exceptional where power hungry amplifiers might otherwise choke during high peak current demands using a conventional supply. Q transformers add tighness and amazing definition to low end playback. They are a must for recording studios that do mastering work.
