Infra Processor and Self Powered double 18 in Infra Sub Ro-Tex finish w /casters

Made in the USA!!

Product Highlights:

• Double 18 in Infra Subwoofer System
• Includes Both Internal Infra Processor and Amplifier
• Configured for portable applications
• Durable Black Ro-Tex Finish
• Dimensions: 43.5 height in x 22 in width x 18 in depth
• Weight: 143 lbs.

Bag End IPD18E-R Overview

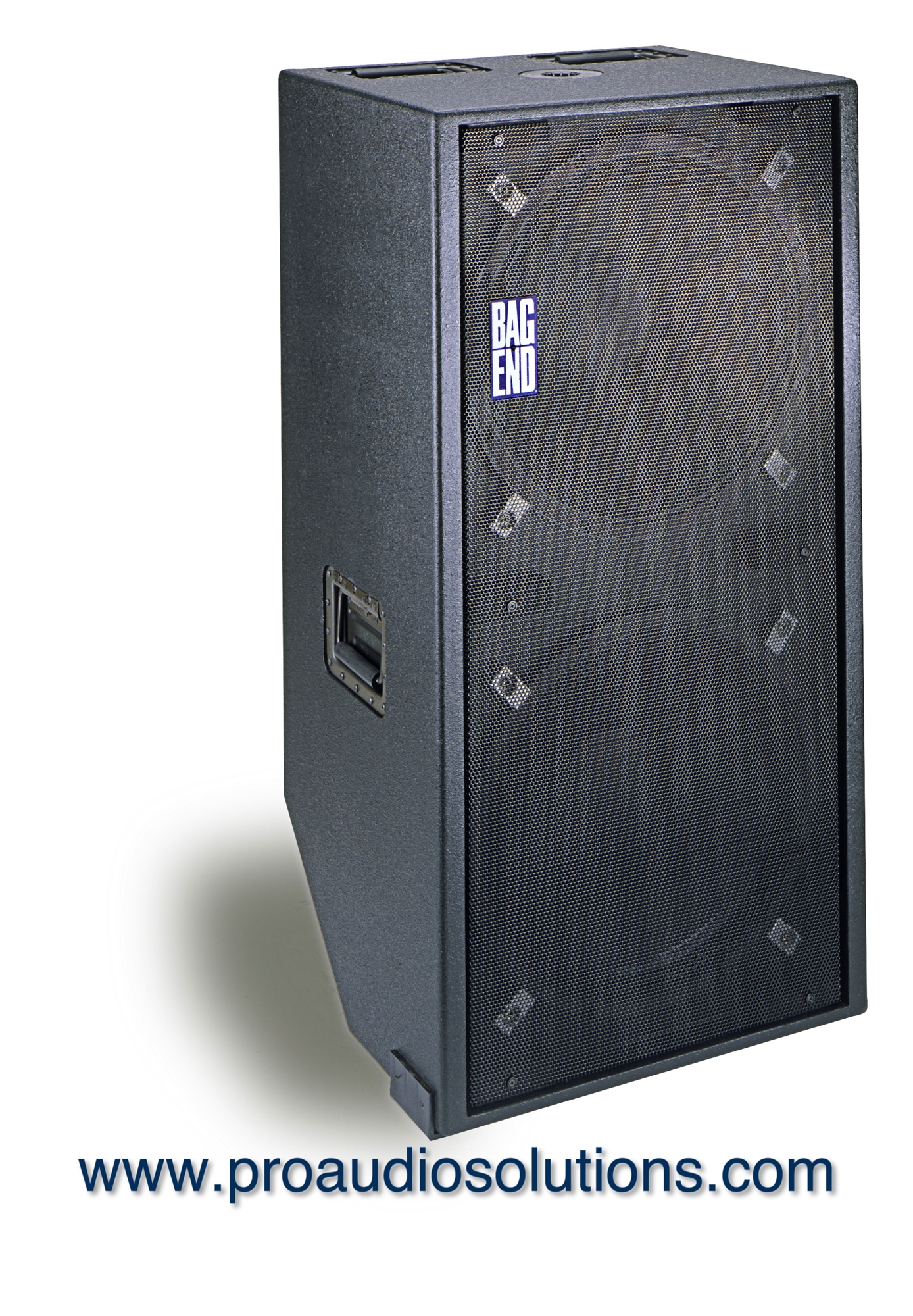

The IPD18E-R is a self-powered and internally InfraTM processed double 18” portable bass system.
The internal Minima OneTM ampli er and InfraTM processing provides for convenient implementation and wiring. The internal InfraTM integrator, ampli er and loudspeaker process the full range signal into a flat response low frequency acoustic output. The Dynamic FilterTM protection threshold is internally preset to eliminate distortion or accidental overload. This insures the maximum output and robust system protection with virtually no audible effect.
The audio input incorporates an InGenius® balanced line receiver, providing very high common mode rejection, to eliminate noise often present in systems with less optimized grounding and wiring schemes. Low voltage contacts are provided to remotely turn the amplifier on and off.

IPD18E-R SPECIFICATIONS:

System Type:2 - InfrasubTM Sealed chambers 3 ft3 each
Enclosure:18 mm 13-ply birch plywood
Finish: Black Ro TexTM True water born environmental nish
Grille: 16 Gauge black power coated perforated steel
Low Frequency Components:2 - EL-18A 18” Extended Transducers, InfraTM cone, 3” Voice coil, 120 oz. Magnet

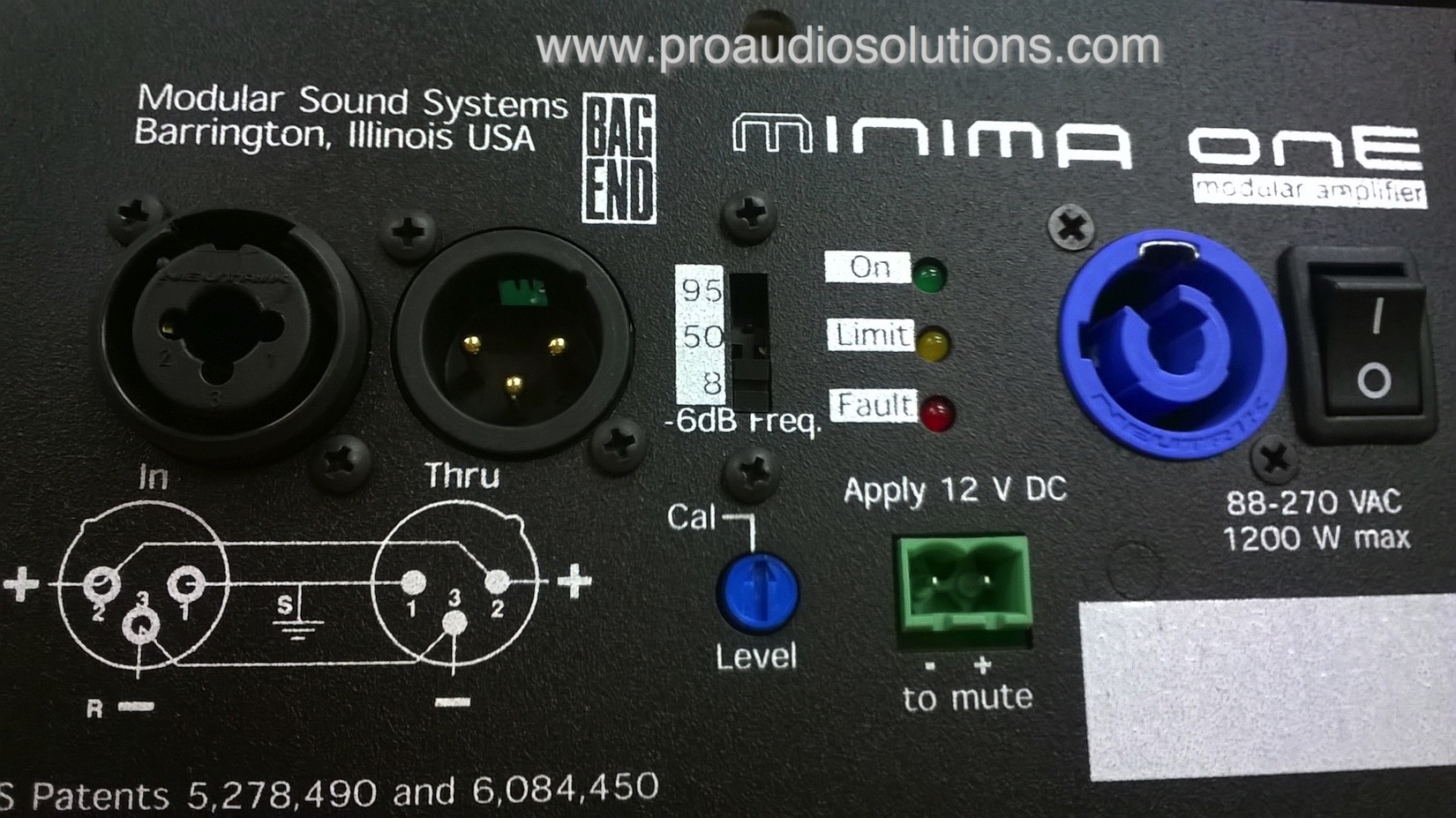

Input Connector: XLR 1/4” combo with XLR loop through
Internal Amplification: Minima OneTM
Input Impedance: 48K Ohms
Input CAL Sensitivity:+4 dBu
Maximum Continuous Amplifier Power: 1350 W into 4 Ohms

High Pass Filter: Switchable: -6 dB @ 8 Hz; @ 50 Hz; @ 95 Hz

LED Indicators:Green - On Yellow - Dynamic Flter threshold Red - System fault or sleep mode

Mains Voltage Requirements: Auto sensing, Universal voltage range 88 Volts minimum to 270 Volts maximum

Mains Current Requirements: 4.6 Amps @ 120 Volts 2.3 Amps @ 240 Volts

Hardware:

• 8 - Recessed handles
• 35 mm Pole mount adapter
• 8 - Machined aluminum speaker
• mounting clamps
• 2 - UHMW polyethylene feet 2 - 3 1/2” Rigid casters

Crossover Type: Internal InfraTM Integrator Inside
Frequency Response: 8 Hz to 95 Hz ±3 dB
Low Frequency Limit:8 Hz

Maximum Calculated Continuous Acoustic Output:

• Half Space @ 1 Meter
• 10 Hz - 96 dBSPL
• 20 Hz - 108 dBSPL 40 Hz - 124 dBSPL 80 Hz - 130 dBSPL

Polarity: A positive asymmetrical signal applied to pin 2 will result in a positive asymmetrical acoustical pressure

Dimensions: 43.5”h x 22”w x 18”d ( 111 cm x 56 cm x 46 cm )

Weight: 141 lbs ( 64 kg )
