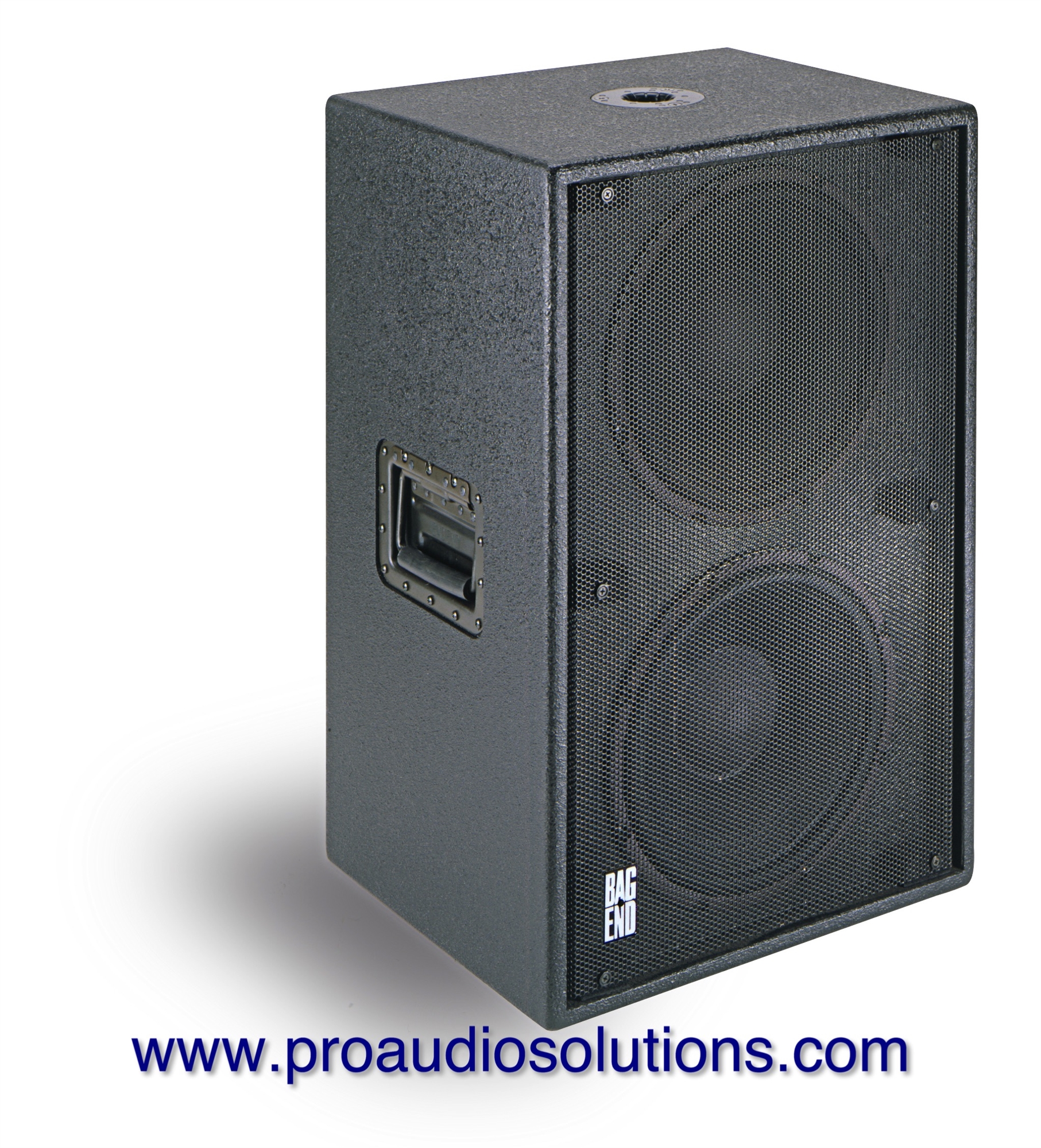

Bag End IPD12E-R - Infra Powered RO-TEX Finish Double 12" Active Subwoofer

SPECIFICATIONS

System Type:

2 - InfrasubTM sealed chambers 1.4 ft3 each Enclosure:

18 mm 13-ply birch plywood

Finish:

Black Ro TexTM True water born environmental Finish

Grille:

16 Gauge black power coated perforated steel

Low Frequency Components:

2 - EL-12 12” Extended Transducers, InfraTM cone, 2.5” Voice coil, 80 oz. Magnet

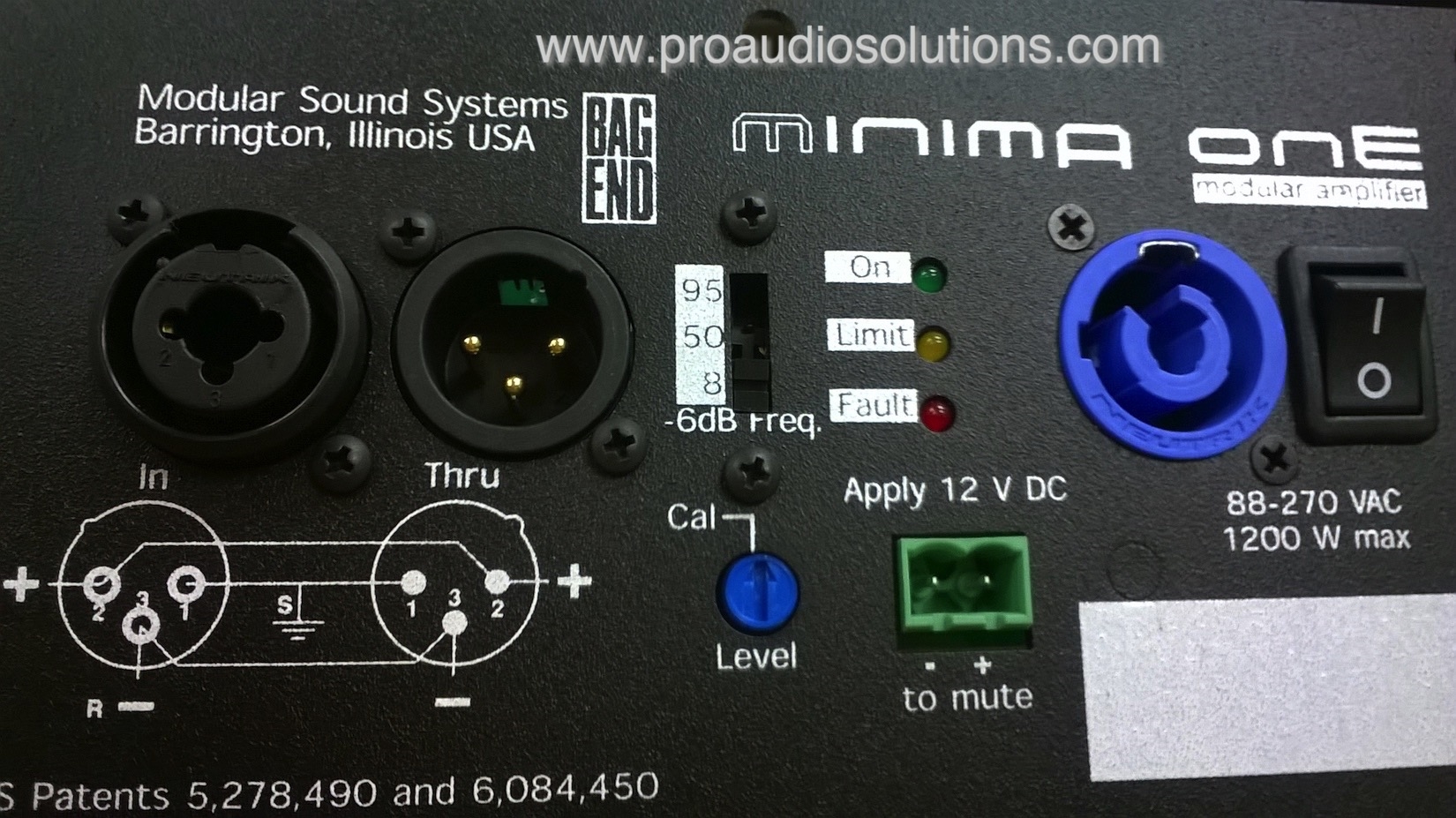

Input Connector:

XLR 1/4” combo with XLR loop through

Internal Ampli cation:

Minima OneTM

Input Impedance:

48K Ohms

Input CAL Sensitivity:

+4 dBu

Maximum Continuous Ampli er Power:
1350 W into 4 Ohms

High Pass Filter:

Switchable: -6 dB @ 8 Hz; @ 50 Hz; @ 95 Hz

LED Indicators:

Green - On
Yellow - Dynamic lter threshold Red - System fault or sleep mode

Mains Voltage Requirements:

font-Auto sensing
Universal voltage range
88 Volts minimum to 270 Volts maximum

Mains Current Requirements:

2.3 Amps @ 120 Volts 1.2 Amps @ 240 Volts

Hardware:

Optional F4 Fly points available

Fly Points Safe Working Load:

200 lbs.

Crossover Type:

<>Internal InfraTM Integrator Inside

8 Hz to 95 Hz ±3 dB

>Low Frequency Limit:

8 Hz

Maximum Calculated Continuous Acoustic Output:
>Half Space @ 1 Meter
10 Hz - 88 dBSPL

20 Hz - 100 dBSPL 40 Hz - 112 dBSPL 80 Hz - 123 dBSPL

<>Polarity:

<">A positive asymmetrical signal applied to pin 2 will result in a positive asymmetrical acoustical pressure

72 cm x 46 cm x 39 cm
