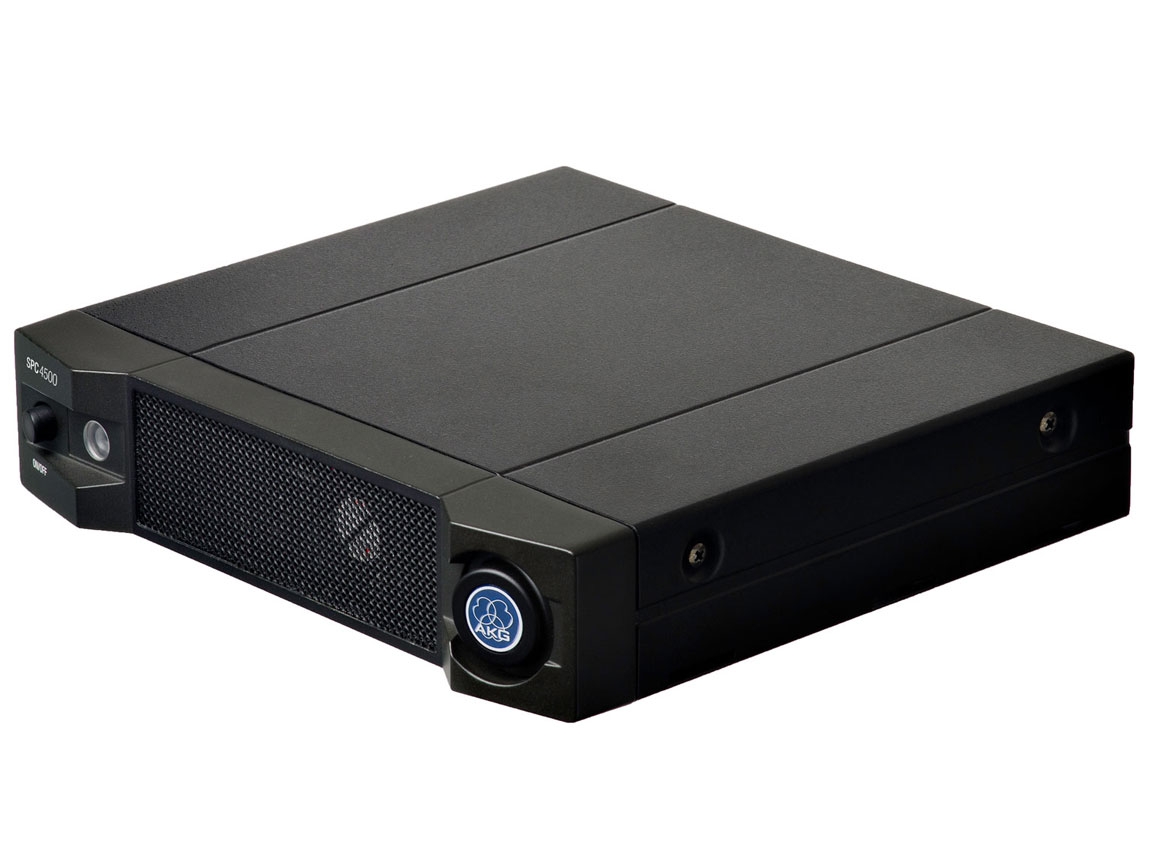

SPC4500 Wideband Antenna Combiner, AKG

Stationary 4:1 combiner
Powers transmitters via antenna lines
Rugged half 19” all metal case
Combines antenna signals of up to four SST4500 IEM stereo transmitters

The SPC4500 wideband antenna combiner allows the set up of large wireless in-ear monitor systems. A single antenna combiner enables the output signals of up to four SST4500 IEM stereo transmitters to be combined into one composite antenna signal. Besides, the SPC4500 powers the SST4500 IEM stereo transmitters connected to it, thus reducing the number of AC adapters in the rack.

You can use either an SRA2 W passive directional antenna or an RA4000 W passive omni-directional antenna for the wireless monitor system.

Box Dimensions:

• 12.99x9.06x2.36

Specifications:

• Carrier Frequency Range: 500 to 865 MHz

• Max. Input Power: 4x 20mW or 2x 50mW

• RF Inputs: 4x BNC sockets, 50 ohms

• RF Output: 1x BNC socket, 50 ohms

• System Gain: 0 dB

• Power Supply: 12V 900mA for SPC, 12V 2000mA for SST

• Dimensions: ½ 19" 1U rack, 200 mm (7.8 in.) × 44 mm (1.7 in.) × 216 mm (8.5 in.)


• Stationary 4:1 combiner, four antenna inputs, one antenna output, rugged half 19" metal case for use with IVM4500 IEM system.

• 2 units of 12V 2000mA power supply are included.

• Optional: Central power supply PSU4000


SPC4500 Accessories:

• Rack mounting kit

DOWNLOADS:

• User Manual
